Typical applications

Designed for temperature reads in hars environments
For use with the AMOT 8071D/8072D PID and other PT100 applications
Recommended temperature sensor for AMOT Model G valves

Operation

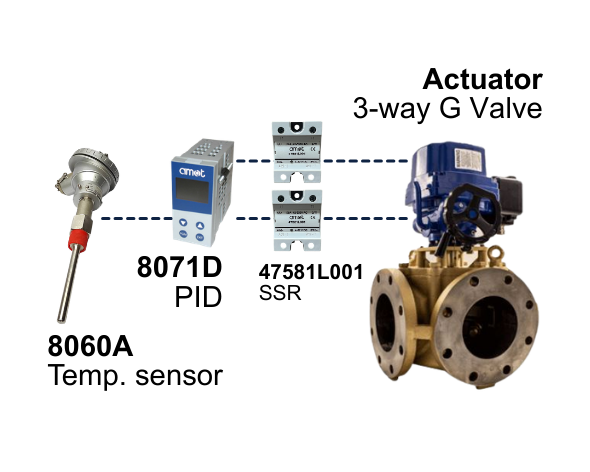

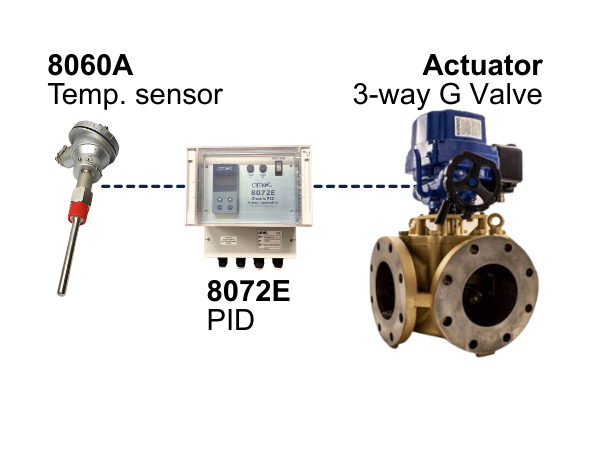

The electric valve system incorporates the use of an electrically actuated three-way control valve with an electronic controller (type 8071D). The 8071D controller can be either panel or wall mounted. The system is
completed with the temperature sensor type 8060. The electric G Valve system is simple to install with standard four core cable, and provides more accurate measurement and control than typical pneumatically operated systems.

AMOT 8060A 3 Wire PT100 Temperature Sensor

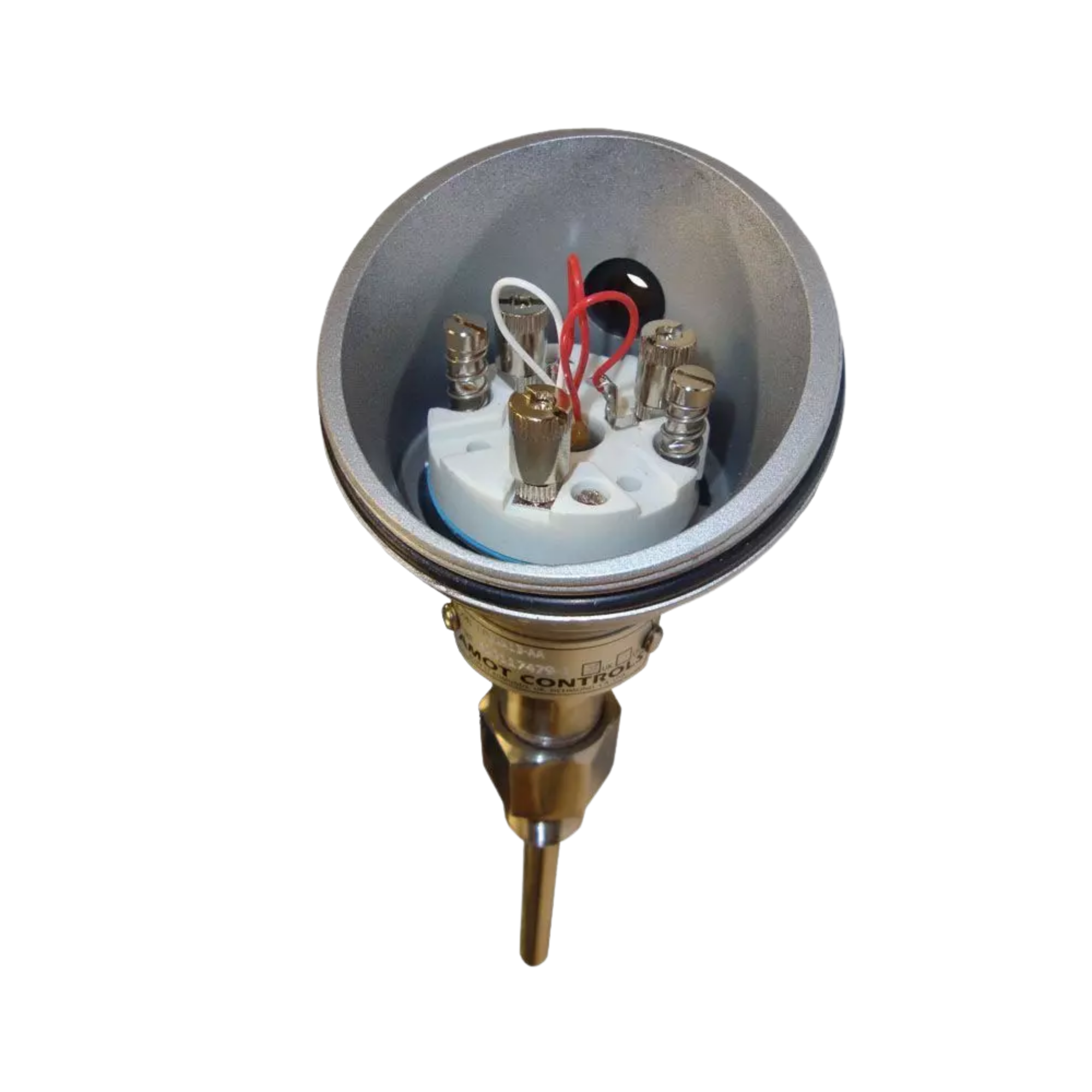

The AMOT 8060 3 wire PT100 temperature sensor is a complete unit consisting of a platinum RTD, stainless steel well and NEMA 6 aluminum connection head. The sensor uses PT 100 RTD to reduce installation cost by using ordinary copper leads for extension wires which require no cold junction compensation.

The 8060 is the best choice for a temperature sensor to control the AMOT model G, 3-way temperature control valve, and a great option for all other PT100 applications.

Key features and benefits

Designed for temperature reads in harsh conditions
NEMA 6 connection head
Temperature range -100 to 250 °C (-145 to 480 °F)
3 wire RTDs for accurate temperature measurement
Excellent long term stability and linearity
Stainless steel well, suitable for a wide variety of applications

Installation

The probe should be:

immersed in centre of flow
installed a minimum of 6 x pipe diameter from a junction or flow disturbance
installed as close as possible to position where temperature control is required. E.g.:

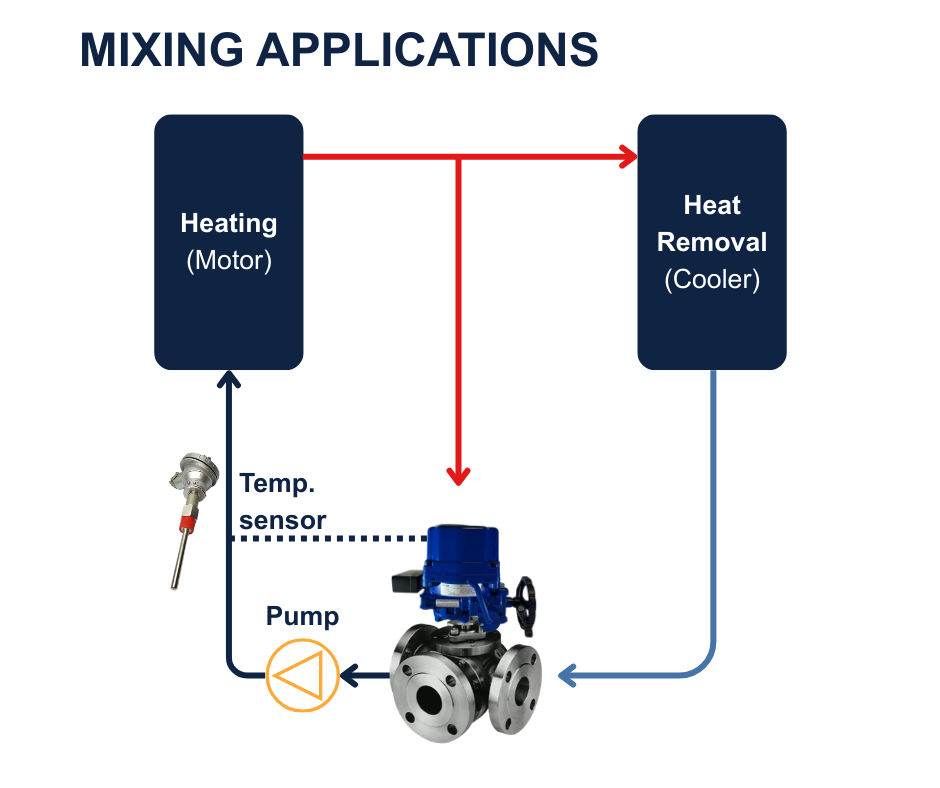

- Mixing applications: probe should be positioned after valve

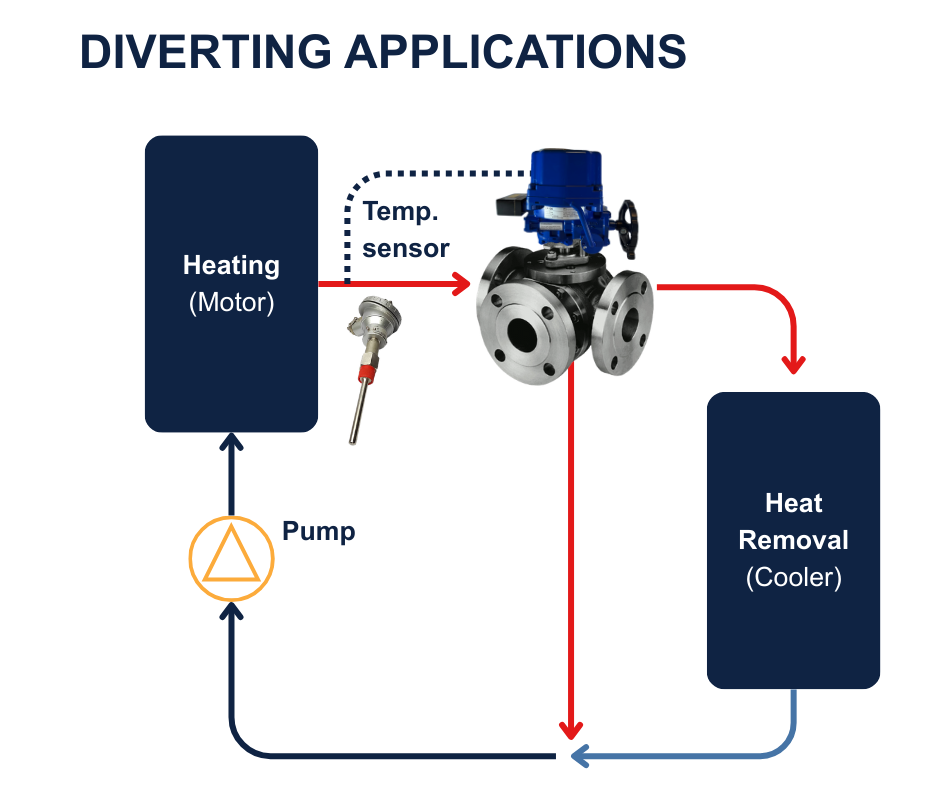

- Diverting applications: probe should be positioned before valve
