Typical applications

  • Position control : EL or EL-PNEU actuated valves
  • AMOT valves: Model G temp. control three-way valve
  • For engines, turbines, geard boxes and heat exchangers: charge air cooling, secondary cooling systems, fuel and lube oil preheating, co-generation, engine jacket water

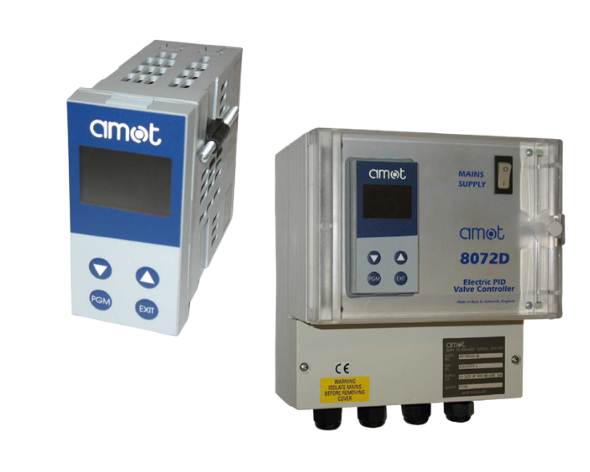

AMOT Controller 8071D/8072E

Electric PID valve controllers for position control of electric and/or pneumatic actuated valves. The PIDs are suitable for engines, turbines, gear boxes and heat exchangers. and fully programmable for easy system configuration.

Choosing the right control system & actuator

To identify the optimal control system setup and product specifications that you need, we have created an overview of the standard recommended setups, and a guide for choosing the control system and actuator. You can access the worksheet on the button below.

Control System Guide

Key benefits

  • Fully programmable PID-based control for easy system configuration
  • Universal inputs for max system design flexibility. RTD’s, thermocouple, or standard 4-20mA signal
  • Can be operated in manual mode
  • Easy maintenance and set up

Key features

  • Max. two programmable analogue outputs
  • Two programmable setpoints, two parameter sets
  • Four limit comparators
  • Two timer functions
  • Two self-optimization procedures
  • RS485 interface available as an option

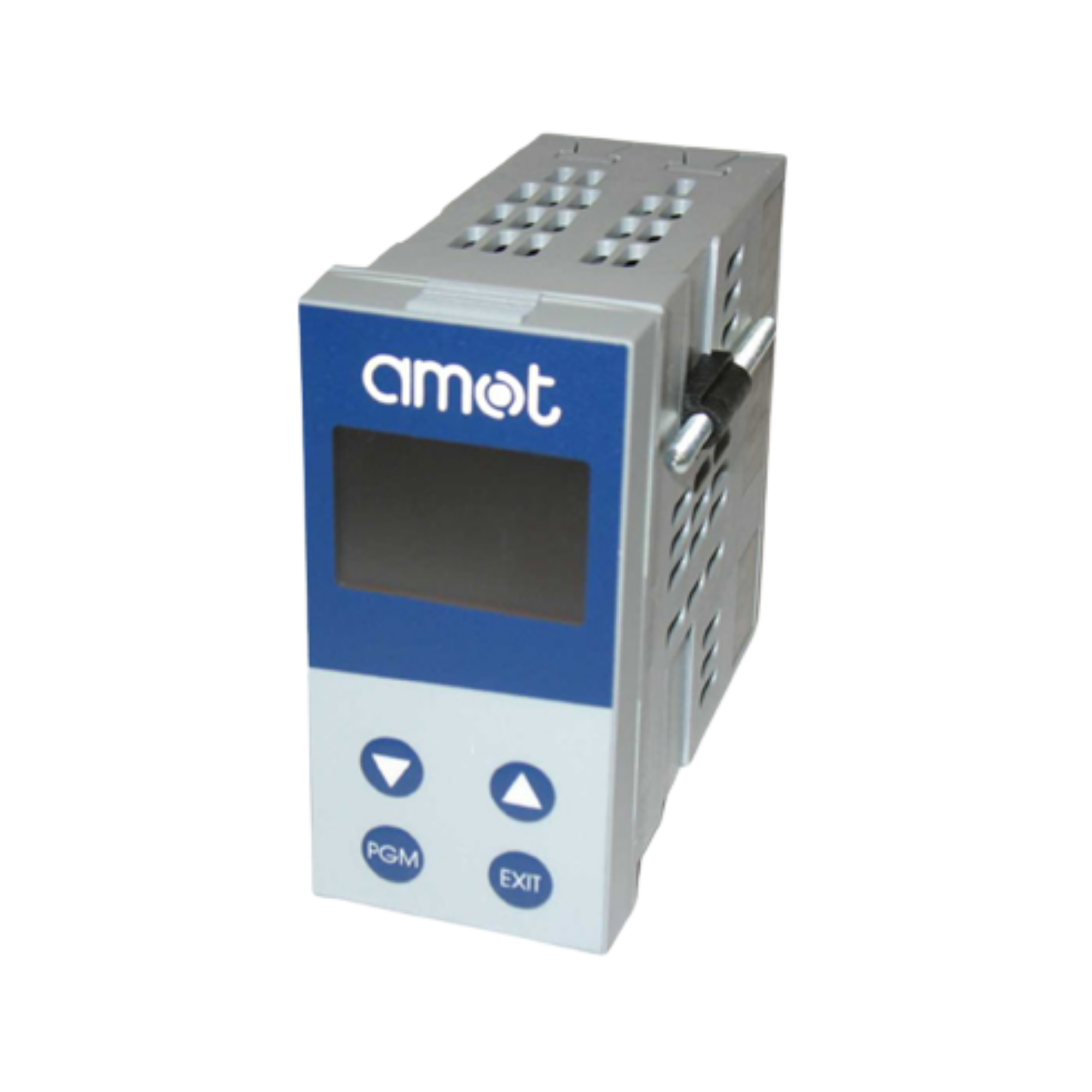

8071D Panel Mount Controller

AMOT Model 8071 Electric PID Valve Controller is a fully programmable PID-based controller which allows for easy system configuration.

Products specifications

Controller type
- Fully configurable PID with digital filtering and selectable parameter sets

Input
- Universal sensor input
2 or 3 wire RTD, TC, 4-20mA selectable

Supply
- 93 to 263 VAC, 48 to 63Hz 13VA max
20-30VDC, 13VA max

Input accuracy
- RTD within 0.05%
- TC within 0.25%
- 4-20mA & 0-10V within 0.1%

Environmental
- 0 to 55°C operational

EMC
- EN 61326-1 Class B

Solid state relay
- 50A rated, opto-isolated, zero-cross switching (4758L001)
- 7A rated, opto-isolated (47581L002)

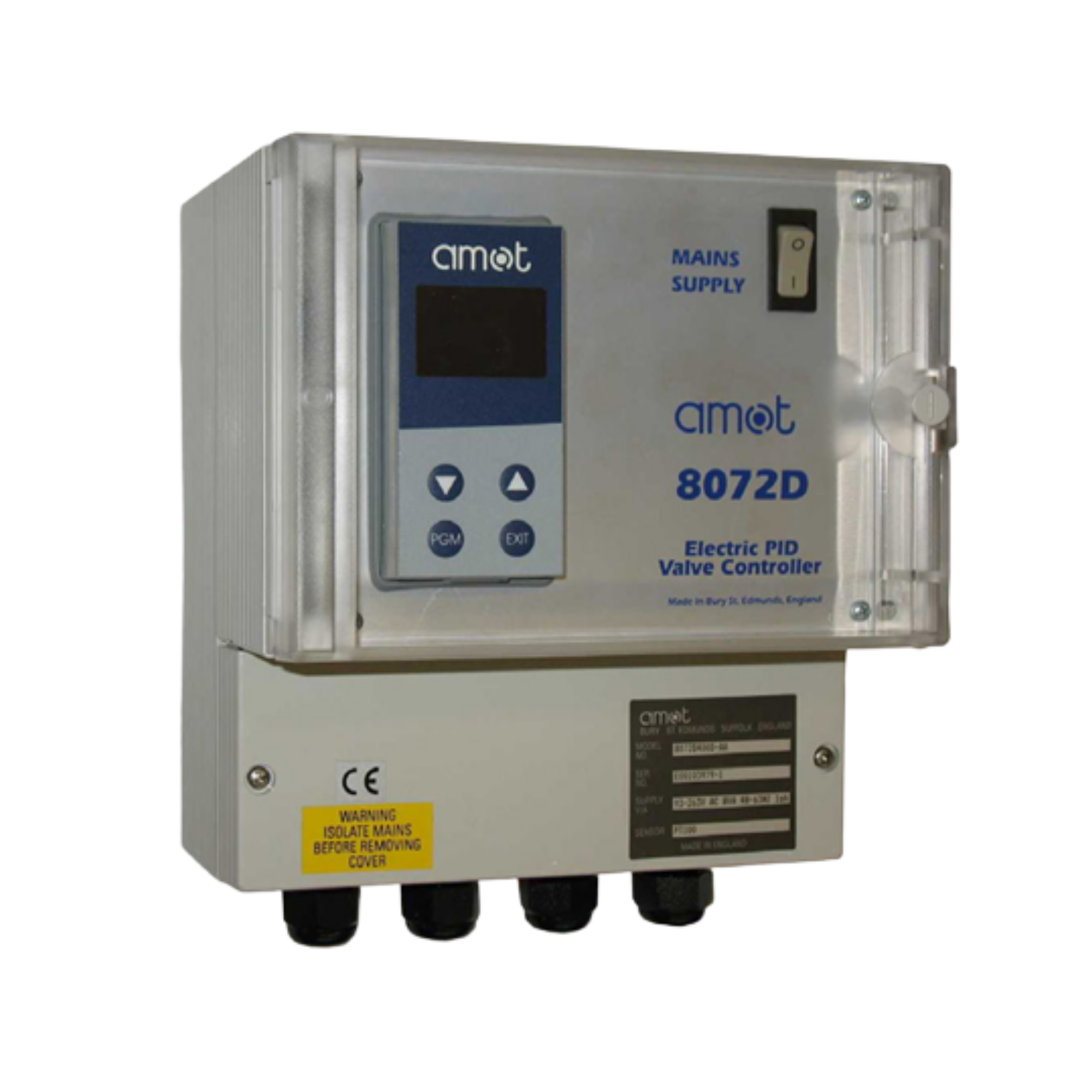

8072E Bulkhead Mount Controller

AMOT 8072E Bulkhead Mount Controller offers position control of electrically or electro-pneumatically actuated valves. The 8072E is comprised of the 8071D controller and two SSRs, pre-wired in a wall mounting with a splash-proof enclosure approved to IP65.

Products specifications

Controller type
- Fully configurable PID with digital filtering and selectable parameter sets

Input
- Universal sensor input
- 2 or 3 wire RTD, TC, 4-20mA selectable

Supply
- 93 to 263 VAC, 48 to 63Hz 13VA max
- 20-30VDC, 13VA max

Input accuracy
- RTD within 0.05%
- TC within 0.25%
- 4-20mA & 0-10V within 0.1%

Input sampling
- 50 to 250ms interval (user configurable)
- Dynamic resolution up to 16 bit

Environmental
- 0 to +50°C operational
- -40 to +70°C (40 - 158°F) storage
- RH<90% (non-condensing)

Solid state relays
- 50A rated, opto-isolated, zero-cross switching (4758L001)
- 7A rated, opto-isolated (47581L002)
