DN 100-150 H flanged with or without man.o.ride

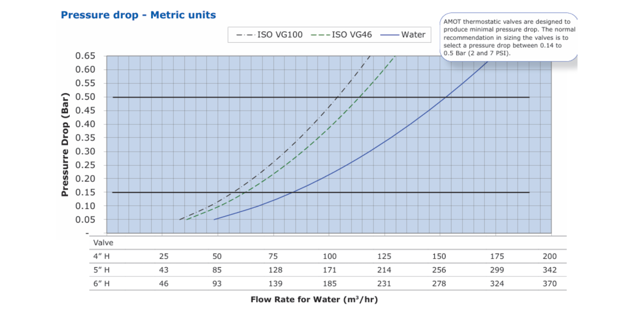

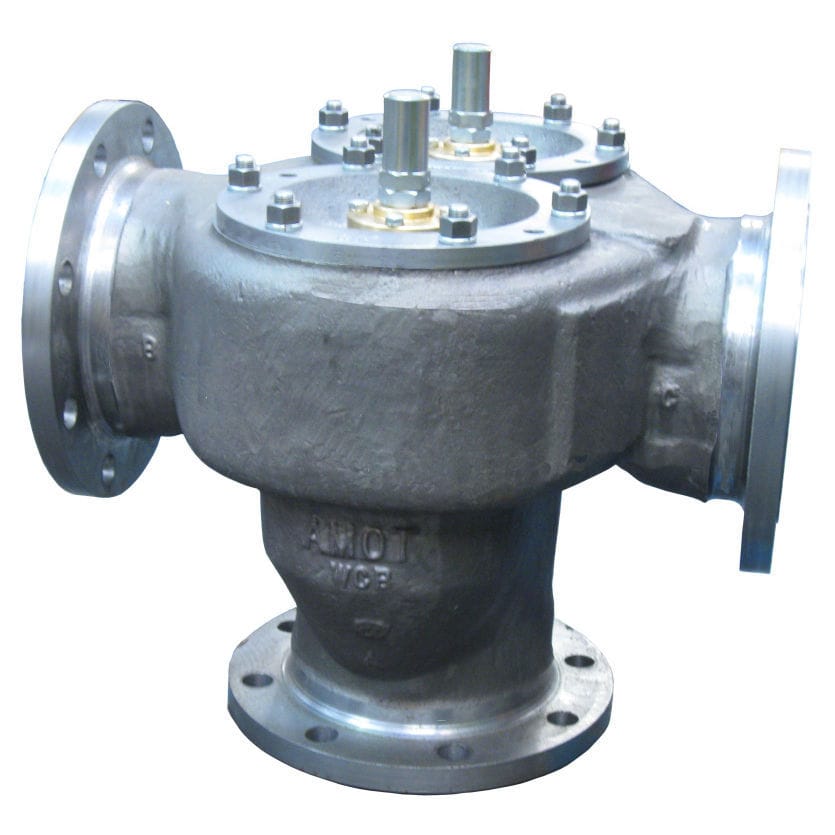

Model H is a 3-way flanged TCV with or without man.o.ride, which can be supplied in diameters DN100 and DN150. Flow rate from 56 m3/h to 280 m3/h. Housings are in steel or stainless steel. Maximum of 45 barg system pressure for DN100 up to 116°C for fresh water/glycol or oil. Maximum of 16 barg system pressure for DN150 up to 116°C for fresh water/glycol or oil.
The TCV is a direct-acting, internal-sensing, self-actuated 2- or 3-way temperature control valve. The regulation takes place automatically as a result of the temperature of the liquid flowing through the valve.
