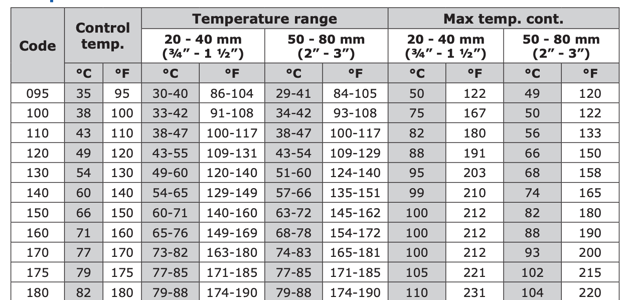

Temperature and element characteristics

DN 20 – DN80 R butt weld

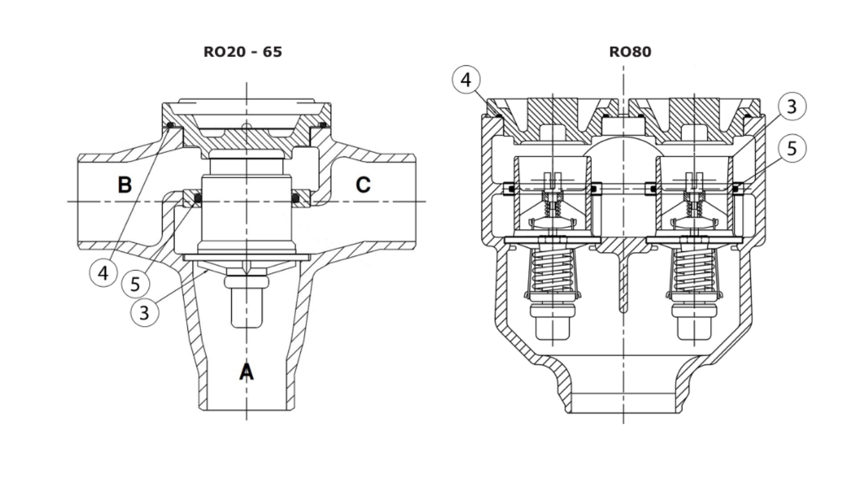

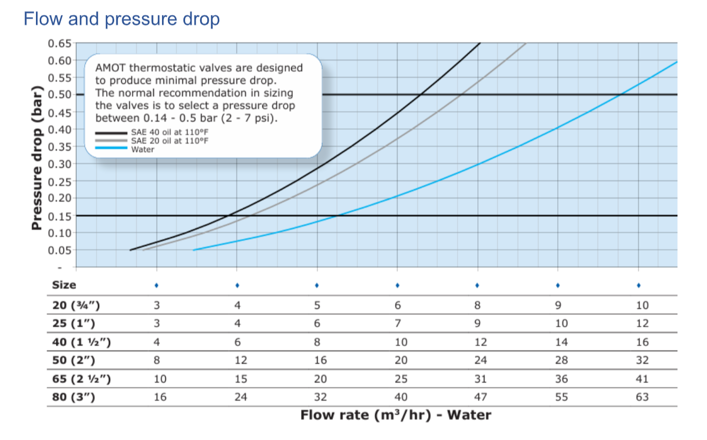

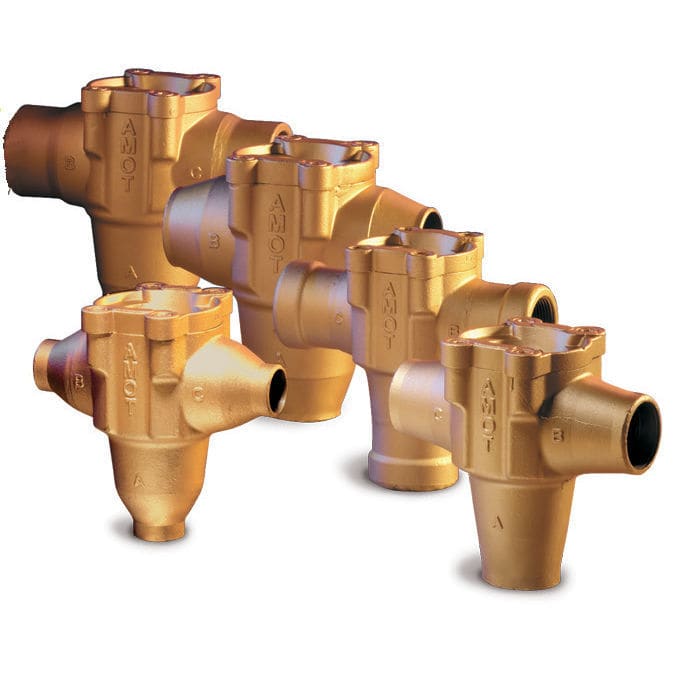

Model R is a 3-way T-config TCV with welded connections which can be supplied in diameters from DN20 to DN80. Flow rates of 3 - 82 m3/h. Tamper-proof temperature settings from 35°C - 82°C. Pressure ratings up to 35 bar.

Accreditations available
• PED Suitable for Group 1 & 2 liquids
• ATEX II 2G Ex h IIC T6...T3 Gb X
• CE Complies with all relevant EU directives

Key benefits

• No leak design, no external moving parts, no external dynamic seals.
• Easily removable elements
• Environmentally friendly
• Reliable performance
• Easy installation- Operates in any mounting position

Typical applications

• Refrigeration compressors
• Industrial compressors
• Turbines
• Engines
• Gear boxes
• High pressure applications

The TCV is a direct-acting, internal-sensing, self-actuated 2- or 3-way temperature control valve. The regulation takes place automatically as a result of the temperature of the liquid flowing through the valve.
