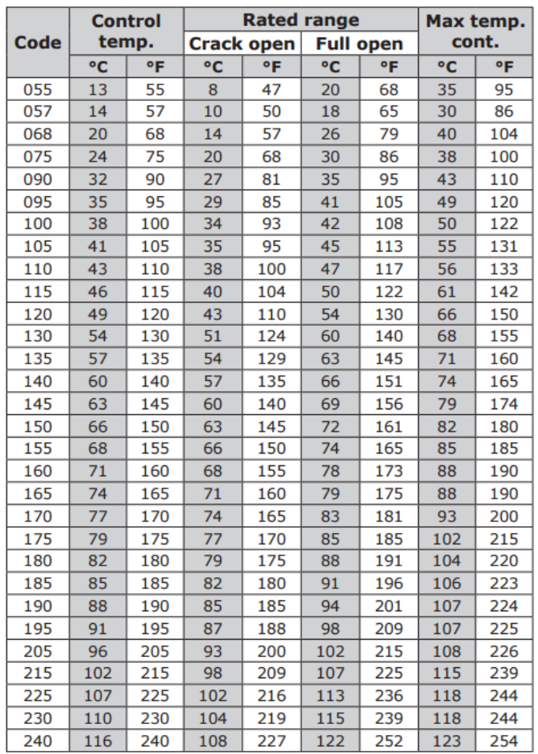

Temperature and elements characteristics
- Model code for DN50 : 2BRBB***09-00-AA
- Model code for DN65: 21/2BRBB***09-00-AA
- Model code for DN80: 3BRBB***09-00-AA
- Model code for DN80: 33BRBB***09-00-AA
- Model code for DN100: 4BRBB***09-00-AA
- Model code for DN125 : 5BRBB***09-00-AA
- Model code for DN150: 6BRBB***09-00-AA
- Model code for DN200: 8BRBB***09-00-AA
- : Where *** is the set temp in Fahrenheit, eg 100°F = 38°C.

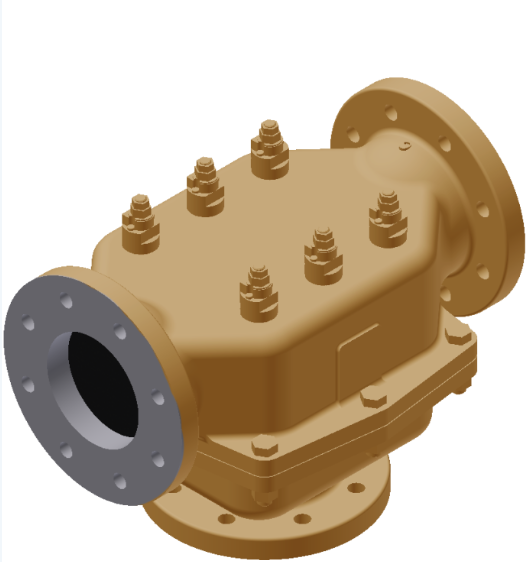

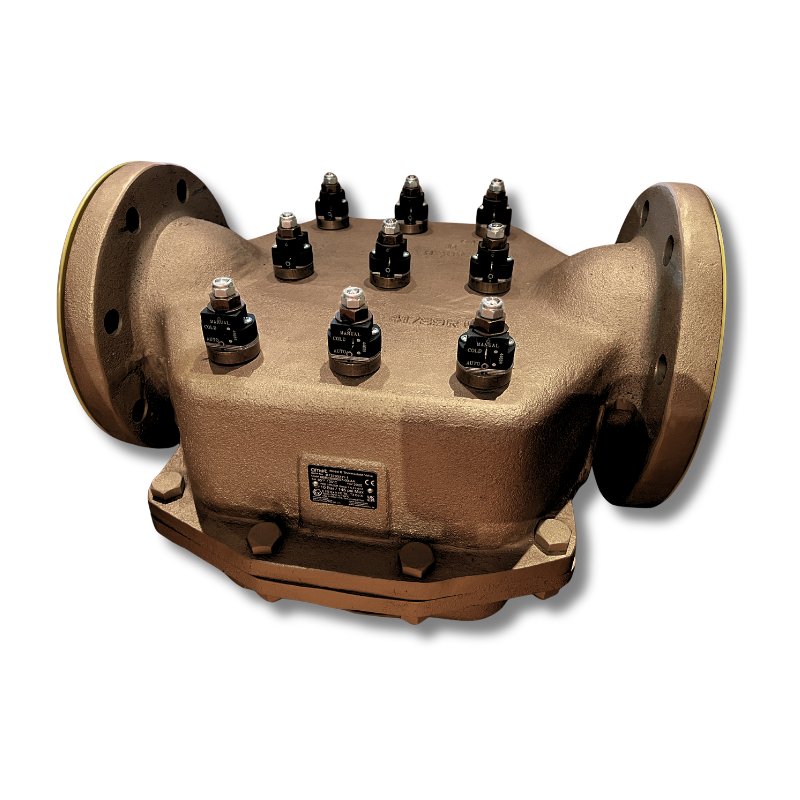

DN15 - DN200 TCV for salt water
We can supply TCV with material and seals optimized for salt water, which is very corrosive. Valves can be supplied with treads or flanges, with or without manual override. Diameters from DN15 to DN200. Flow from 0,3 m3/h to 415 m3/h. The standard version is for a maximum of 10 barg system pressure up to 85°C.
The TCV is a direct-acting, internal-sensing, self-actuated 2- or 3-way temperature control valve. The regulation takes place automatically as a result of the temperature of the liquid flowing through the valve.
Sizes

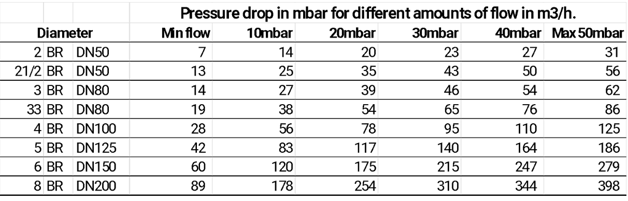

The table below shows available sizes in inches and mm, as well as pressure drop in mbar for different flow rates in m3/h.
Element types and seal materials

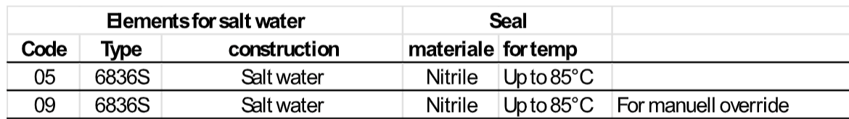

Most of AMOT's TCV models can be delivered in material bronze optimized for salt water. The table below shows elements and seals for model B.
Standard configuration for salt water
Spec: PN10-PN16 Flat Face, Max 10 BARG, T-CONFIG, BRONZE, ELEMENTS FOR SALT WATER, NITRILE SEALS, MAN.O.RIDE. With set temperatures according to table.
