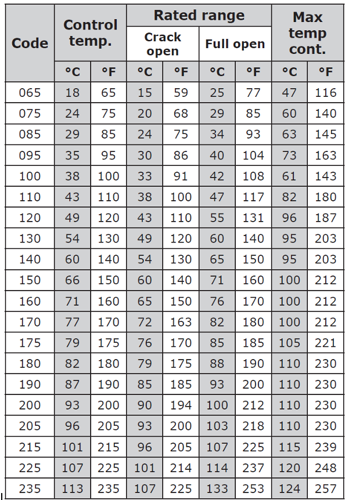

Temperature and elements characteristics
- Element types and seal materials: Standard configuration for water/glycol, as well as oil. Spec available in stock for fast delivery: BSP, Max 10 BAR, F-CONFIG, CAST IRON, STD ELEMENT AND NITRILE SEALS
- : With set temperatures according to table above.
- Model codes : DN15 1/2CMCU***01-0-AA
- Model codes: DN20 3/4CMCU***01-0-AA
- Model codes: DN25 1CMCU***01-0-AA
- Model codes: DN32 11/4CMCU***01-0-AA
- Model codes: DN32 11/4CMMCU***01-0-AA
- Model codes: DN40 11/2CMCU***01-0-AA
- : Where *** is the set temp in Fahrenheit, eg 100°F = 38°

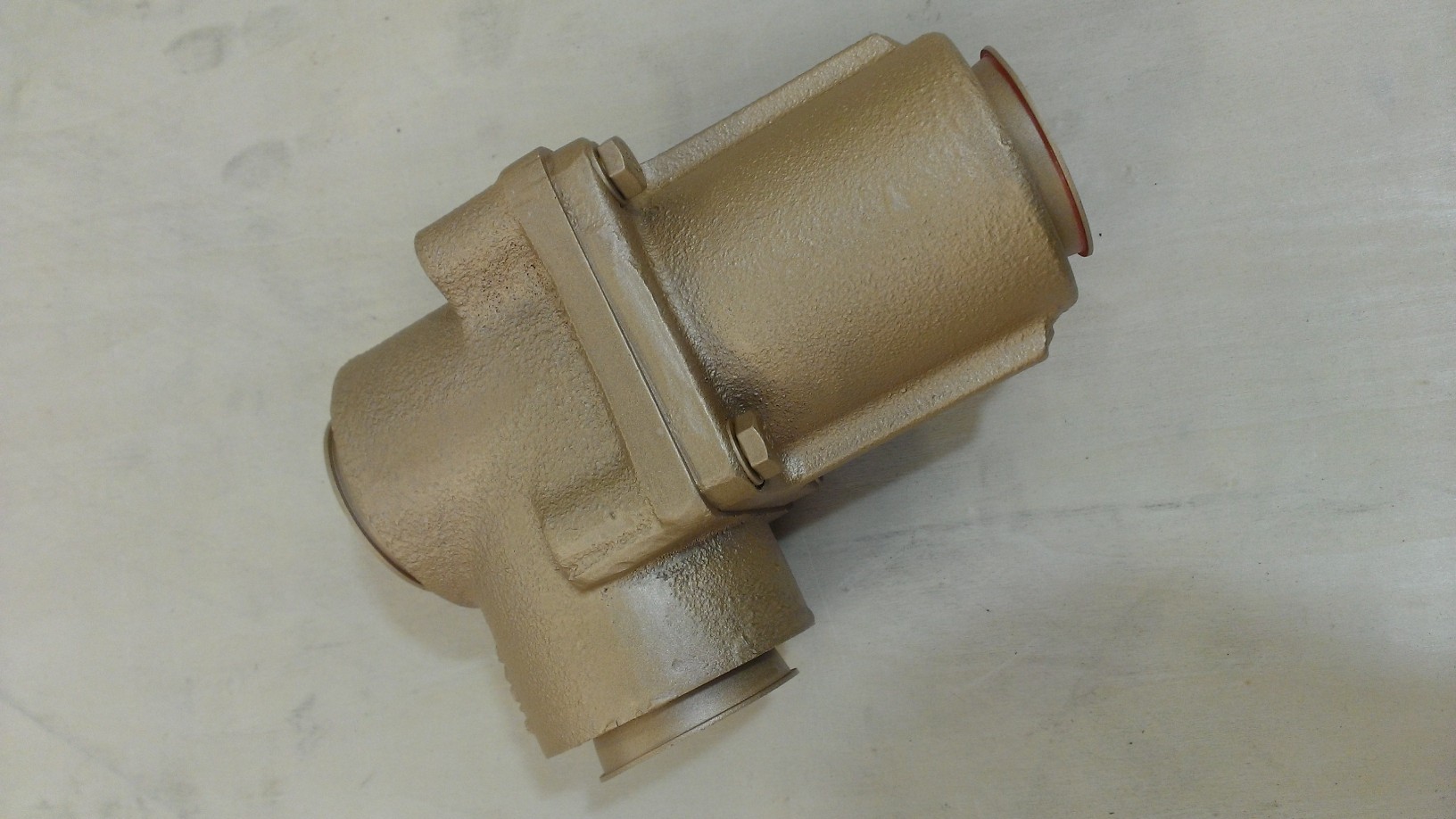

DN15 – DN40 C with threads
Model C with treads is a F-configuration 3- way TCV which can be supplied in diameters from DN15 to DN40. Flow rates of 0.3 - 13.1 m3/h. Available materials: cast iron, aluminum, bronze, carbon steel and stainless steel. Tamper-proof temperature settings from 18°C - 113°C. Pressure ratings up to 72 bar. The TCV is a direct-acting, internal-sensing, self-actuated 2- or 3-way temperature control valve. The regulation takes place automatically as a result of the temperature of the liquid flowing through the valve.
- Model C with treads is a 3-way F-configuration TCV in diameter DN15 or DN40.
- Flow rate up to 11,9 m3/h.
- The standard version is for a maximum of 10 barg system pressure up to 113°C for fresh water/glycol or oil.
- BO can be supplied in many designs for many areas of use and different types of coolant.
-
The TCV is a direct-acting, internal-sensing, self-actuated 2- or 3-way temperature control valve. The regulation takes place automatically as a result of the temperature of the liquid flowing through the valve.
Sizes

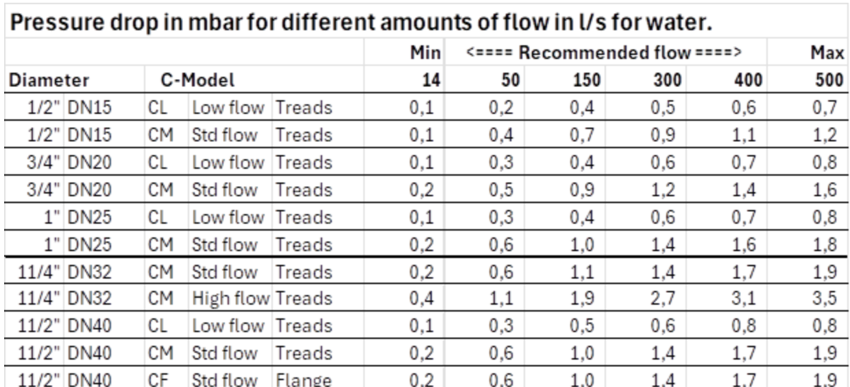

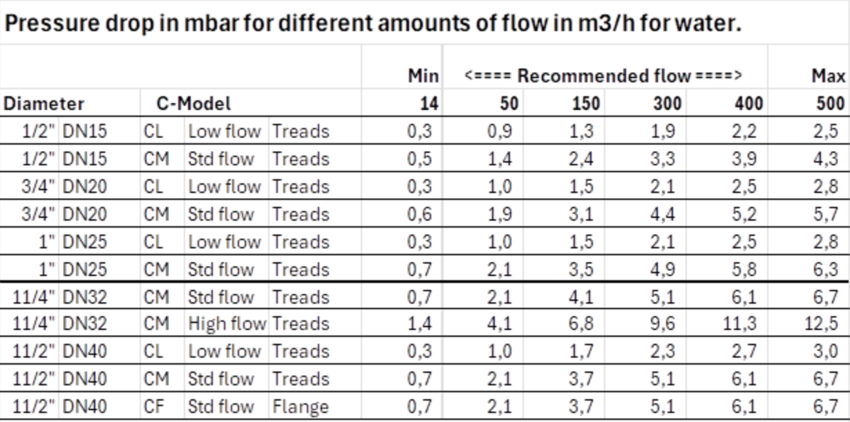

The table below shows available sizes in inches and mm, as well as pressure drop in mbar for different flow rates in m3/h.
- Threads: BSP NPT
