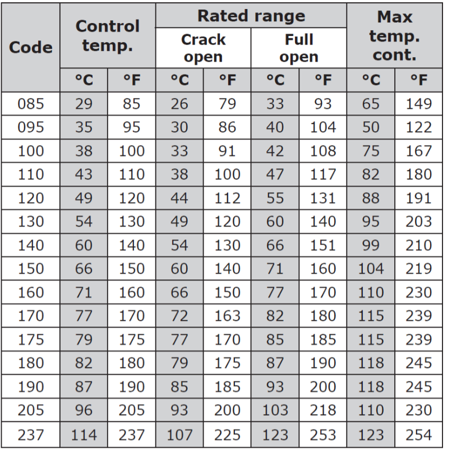

Temperature and elements characteristics
- Model codes: DN15 1/2ELCB***01-0-AA
- Model codes: DN20 3/4ELCB***01-0-AA
- Model codes: DN25 1ELCB***01-0-AA
- Model codes: DN32 11/4ELCB***01-0-AA
- Model codes: DN40 11/2ELCB***01-0-AA
- : Where *** is the set temp in Fahrenheit, eg 100°F = 38°C
DN15 - DN40 E with threads

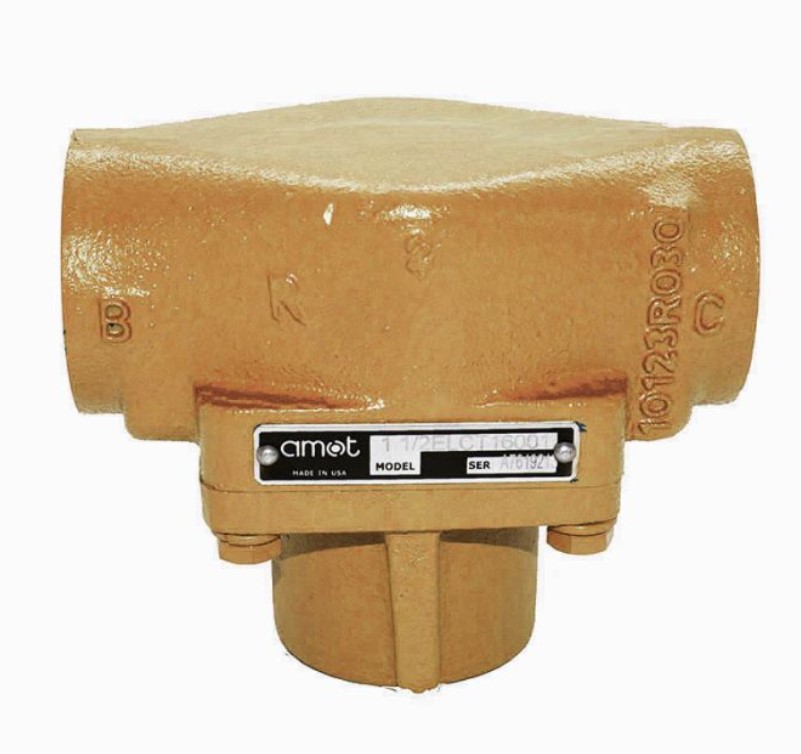

Model E is a 3-way TCV with threads which can be supplied in diameters from DN15 to DN40. Flow rate from 0,9 m3/h to 17,5 m3/h. The standard version is for a maximum of 10 barg system pressure up to 116°C for fresh water/glycol or oil. BR can be supplied in many designs for many areas of use and different types of coolant.
The TCV is a direct-acting, internal-sensing, self-actuated 2- or 3-way temperature control valve. The regulation takes place automatically as a result of the temperature of the liquid flowing through the valve.
Sizes

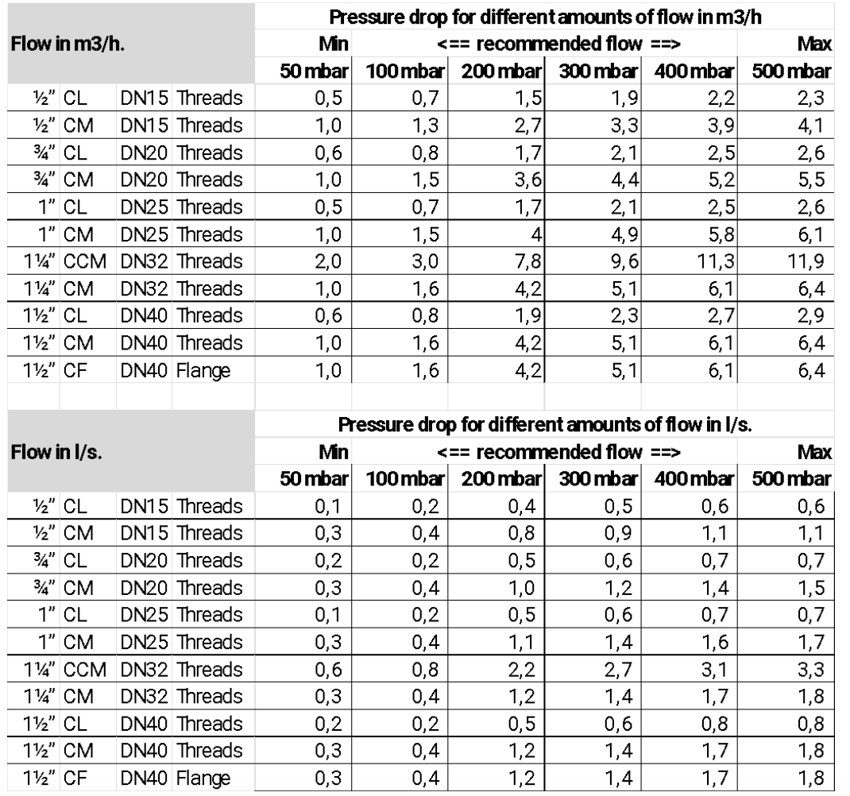

The table below shows available sizes in inches and mm, as well as pressure drop in mbar for different flow rates in m3/h.
Threads:
BSP NPT
Max working pressure is 10 bar, unless otherwise stated, regardless of flange type.

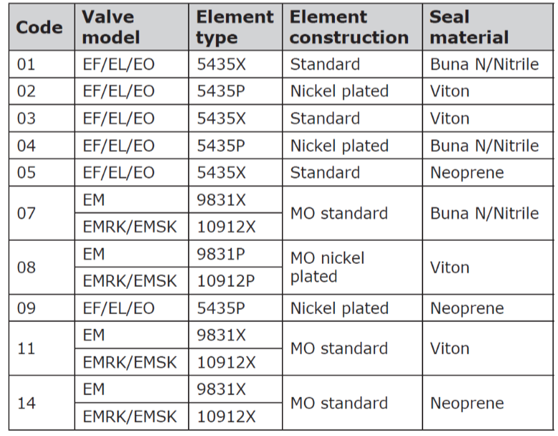

Element types and seal materials
Standard configuration for water/glycol, as well as oil. Spec available in stock for fast delivery: BSP, Max 10 BAR, T-CONFIG, CAST IRON, STD ELEMENT AND NITRILE SEALS, MAN.O.RIDE. With set temperatures according to table.
