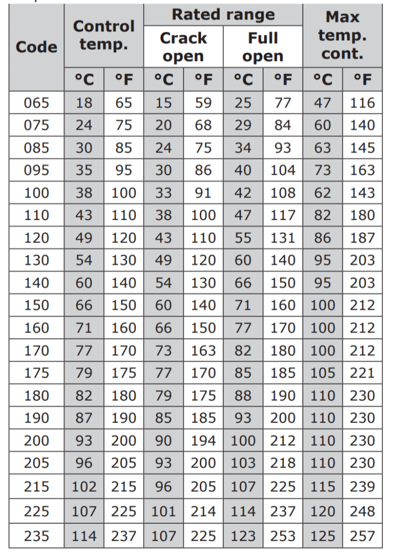

Temperature and elements characteristics
Standard configuration for water/glycol, as well as oil. Spec available in stock for fast delivery: BSP, Max 24 BAR, F-CONFIG, ALU, STD ELEMENT AND NITRILE SEALS.
- Model codes: DN40 3/4JOAU14001-00-AA

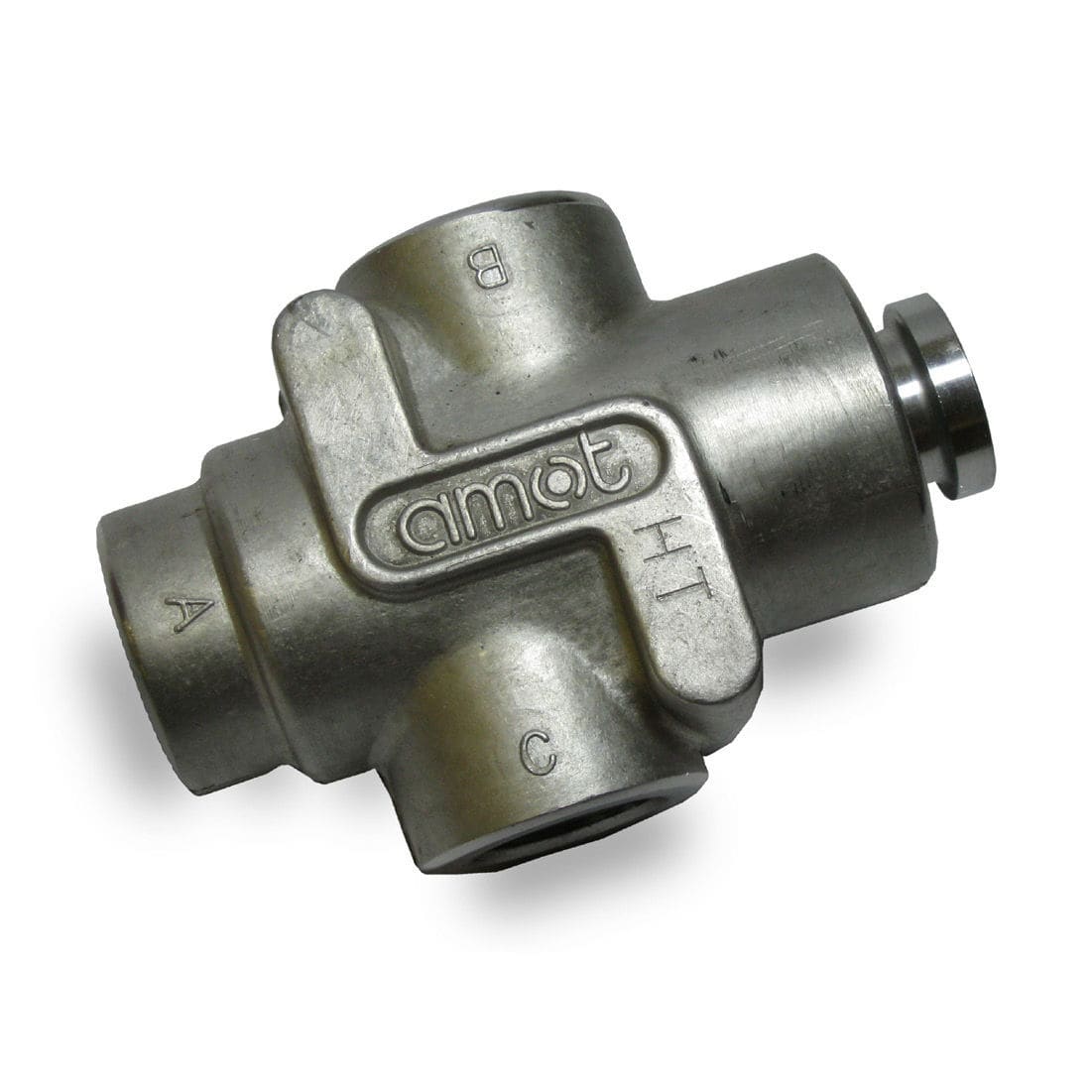

DN20 J with treads
Model J is a 3 way TCV with treads which can be supplied in diameter DN20. Flow rates of 2 - 8 m3/h. Housings in aluminum or bronze. Tamper-proof temperature settings from 18°C - 113°C. Pressure ratings up to 24 bar. The TCV is a direct-acting, internal-sensing, self-actuated 2- or 3-way temperature control valve. The regulation takes place automatically as a result of the temperature of the liquid flowing through the valve.
- Model J with treads is a 3-way F-configuration TCV in diameter DN20.
- Flow rate up to 8 m3/h.
- The standard version is for a maximum of 24 barg system pressure up to 116°C for fresh water/glycol or oil
- J can be supplied in many designs for many areas of use and different types of coolant.
The TCV is a direct-acting, internal-sensing, self-actuated 2- or 3-way temperature control valve. The regulation takes place automatically as a result of the temperature of the liquid flowing through the valve.
- Threads: BSP NPT
