Temperature and elements characteristics
- Model code for DN40 : 11/2BHCB***01-00-AA
- Model code for DN50: 2BHCB***01-00-AA

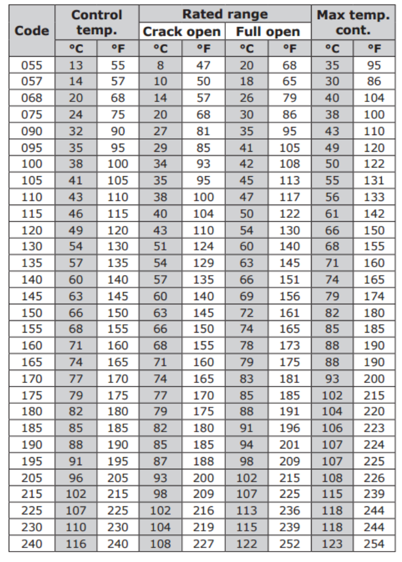

- : Where *** is the set temp in Fahrenheit, eg 100°F = 38°
DN40 - DN50 BH with threads, high pressure

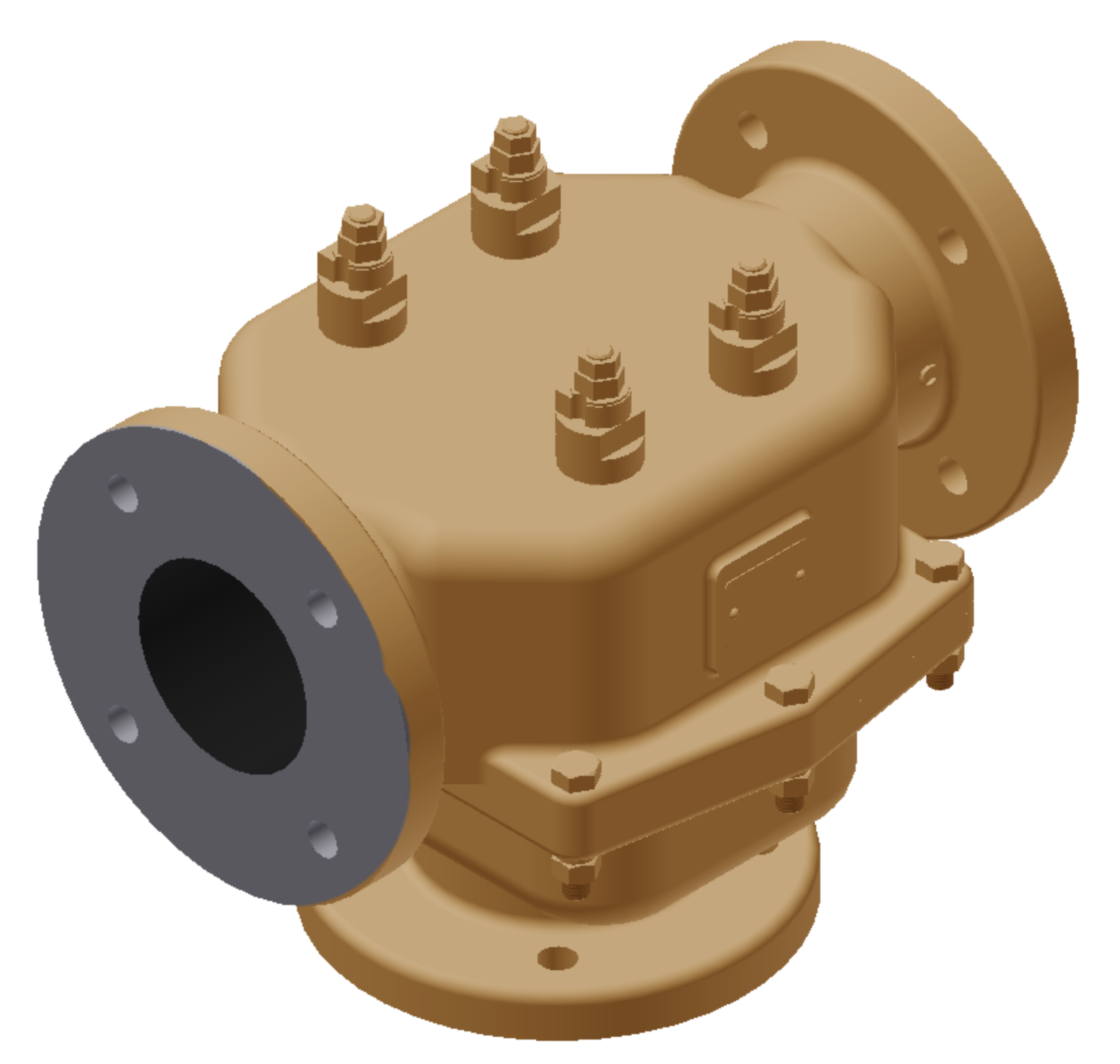

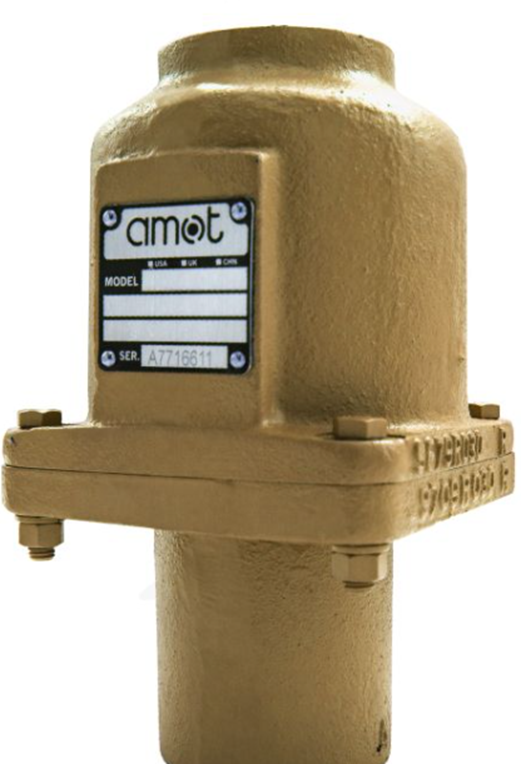

Model BH is a 3-way F-configuration TCV in diameter DN40 and DN50. Flow rate up to 33 m3/h. The standard version is for a maximum of 22 barg system pressure up to 116°C for fresh water/glycol or oil. BH can be supplied in many designs for many areas of use and different types of coolant.
The TCV is a direct-acting, internal-sensing, self-actuated 2- or 3-way temperature control valve. The regulation takes place automatically as a result of the temperature of the liquid flowing through the valve.
Sizes

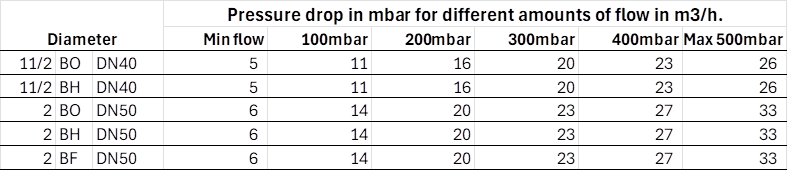

The table below shows available sizes in inches and mm, as well as pressure drop in mbar for different flow rates in m3/h.
Threads: BSP NPT

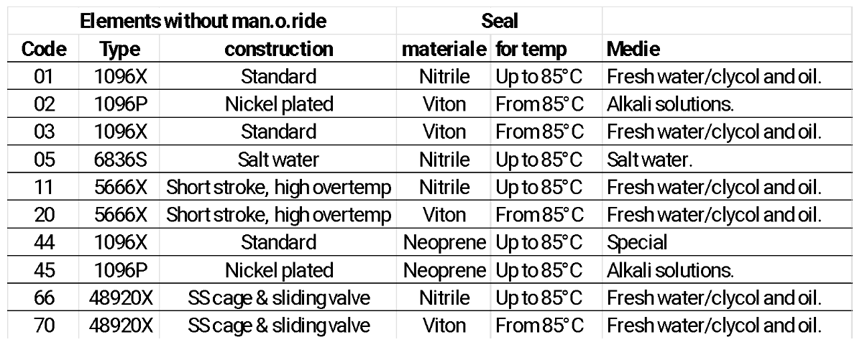

Element types and seal materials
Standard configuration for water/glycol, as well as oil. Spec available in stock for fast delivery: BSP, Max 22 BAR, F-CONFIG, CAST IRON, STD ELEMENT AND NITRILE SEALS. With set temperatures according to table.
