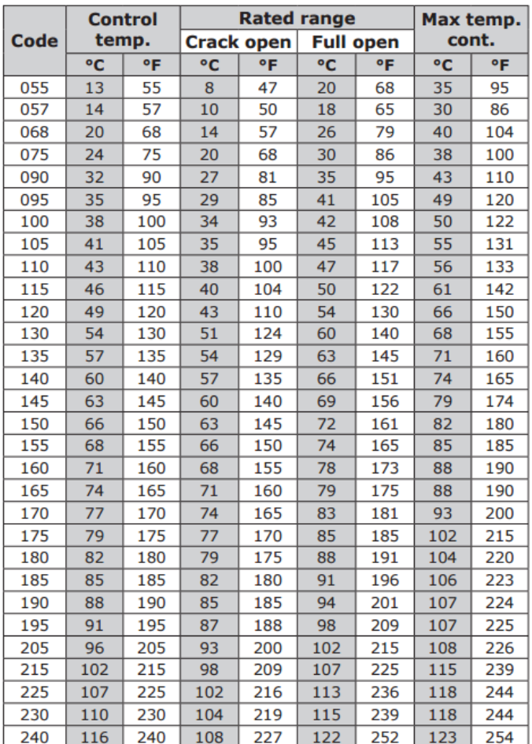

Temperature and elements characteristics



  • Model codes: DN50 2BCCB***01-00-AA
  • Model codes: DN65 21/2BOCB***01-00-AA
  • Model codes: DN80 3BOCB***01-00-AA
  • Model codes: DN80 33BOCB***01-00-AA
  • Model codes: DN100 4BOCB***01-00-AA
  • Model codes: DN125 5BOCB***01-00-AA
  • Model codes: DN150 6BOCB***01-00-AA
  • Model codes: DN200 8BOCB***01-00-AA
  • : Where *** is the set temp in Fahrenheit, eg 100°F = 38°

DN50 - DN200 BO with flanges

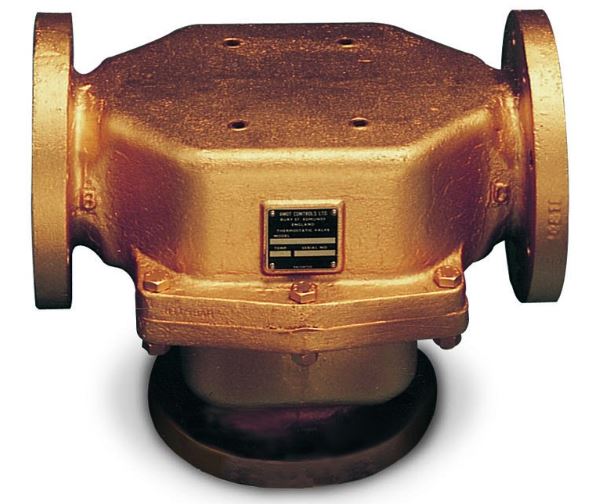

Model BO is a 3-way TCV with flanges which can be supplied in diameters from DN50 to DN200. Flow rate from 33 m3/h to 415 m3/h.

The standard version is for a maximum of 10 barg system pressure up to 116°C for fresh water/glycol or oil. BO can be supplied in many designs for many areas of use and different types of coolant. The TCV is a direct-acting, internal-sensing, self-actuated 2- or 3-way temperature control valve. The regulation takes place automatically as a result of the temperature of the liquid flowing through the valve.

Sizes

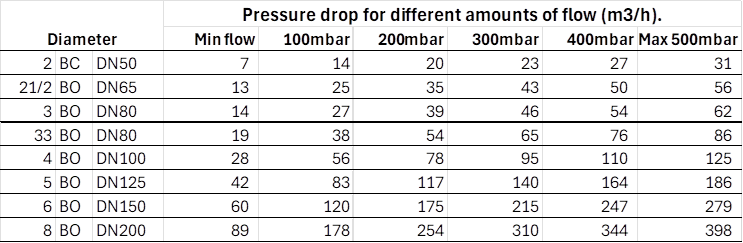

The table below shows available sizes in inches and mm, as well as pressure drop in mbar for different flow rates in m3/h.

Flanges

En1092: PN6, PN10 and PN16. ASME: 125, 150, 300 and 600lb. JIS: 5 and 10K. Max working pressure is 10 bar, unless otherwise stated, regardless of flange type.

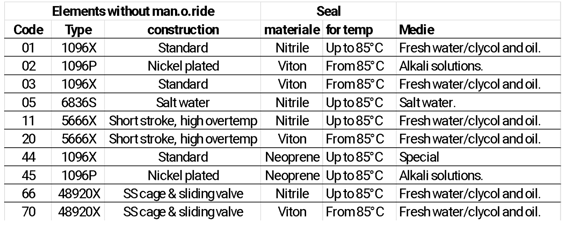

Element types and seal materials

Standard configuration for water/glycol, as well as oil.

Spec available in stock for fast delivery: PN10-PN16 Flat Face, Max 10 BAR, T-CONFIG, CAST IRON, STD ELEMENT AND NITRILE SEALS. With set temperatures according to table.

Category: Amot TCV
