Key Benefits
- No external power source required – simple, low cost installation
- No user setting needed, “fit and forget” solution
- Small number of parts – simple, low cost maintenane and operation
- Robust design that withstands high vibration and shock applications
- Can be mounted in any position
- Safeguarded against cyber attacks
- Explosion-proof
Key Features
- Flow rates of 0.3–6.5 m³/h
- Housings in carbon steel, 316 stainless steel and NANO treaded 316 stainless steel for saltwater
- DN15 – DN20 – DN25
1/2” – 3/4” – 1” - Threaded connection, BSPP or NPT
- Tamper‑proof temperature settings from 18°C – 113°C
- Pressure ratings up to 40 bar
- Temperature settings: 18°C–113°C
For durability avoid continuous operation within 14°C
of the max continuous rating

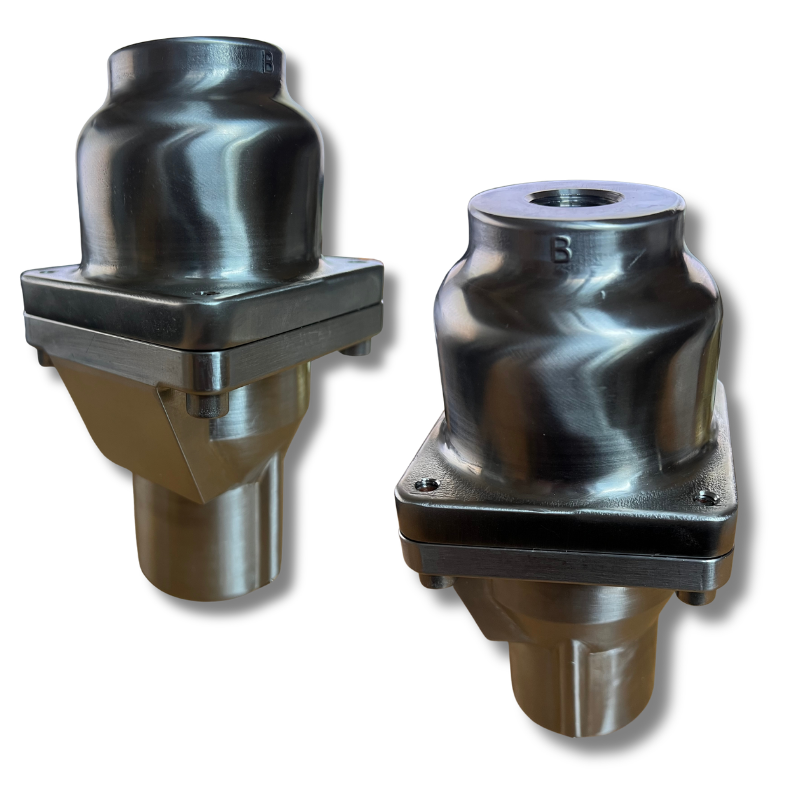

2-Way Thermostatic Control Valve
Overview
Model C2 thermostatic valves cover multiple sizes and settings for fluid temperature control. They can be mounted in any position, and use the thermal expansion of a copper-wax compound to actuate element assemblies. The valves are available in two versions:
1) Temperature-opening
Remains closed below the setpoint and progressively opens
when the temperature exceeds the setpoint.
2) Temperature-closing
Remains open below the setpoint and progressively closes
when the temperature exceeds the setpoint.
Areas of Use
|
|
|
|
Typical Applications
- Temperature control
- Temperature regulation in various systems such as tanks, district‑heating installations, engines, and gear units - Temperature limitation
- Prevents excessively low temperatures, functioning as frost protection
- Prevents overheating in hot‑water pipelines - Water‑saving systems
- Maintains a minimum flow through the cooler for proper operation but shuts down unnecessary flow when the temp. is sufficiently low or high
